Highest BLP650 Low Profile HV Servo

HSBLP650 - Highest BLP650 Servo

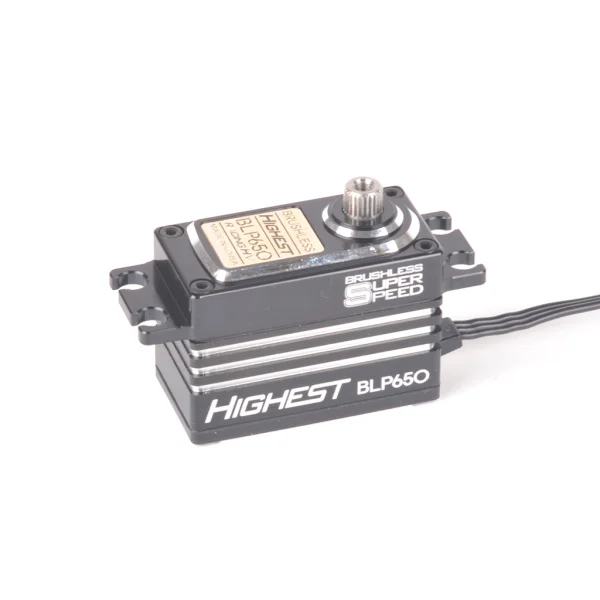

Highest BLP650 Servo

The servo is equipped with a high-performance brushless motor and an all-aluminium case with the bottom case now also being made of alloy.

- 32Bit MCU
- High Efficiency Coreless Motor(JAPAN)
- Full Aluminium Case
- Full Metal Gears
- Output Shaft 25T
- Operating Speed (6.0V) : 0.07 sec/60°
(7.4V) : 0.06 sec/60°
- Dynamic Torque (6.0V) : 9.90 kg-cm
(7.4V) : 12.20 kg-cm
- Operating Temperature 14° to 140° F (-10 to +60° C)
- Operating Voltage 6.0V~7.4V
- Size 39.5 * 20.0 * 30.6 mm
- Weight 51.7g
- Sanwa SSR mode
