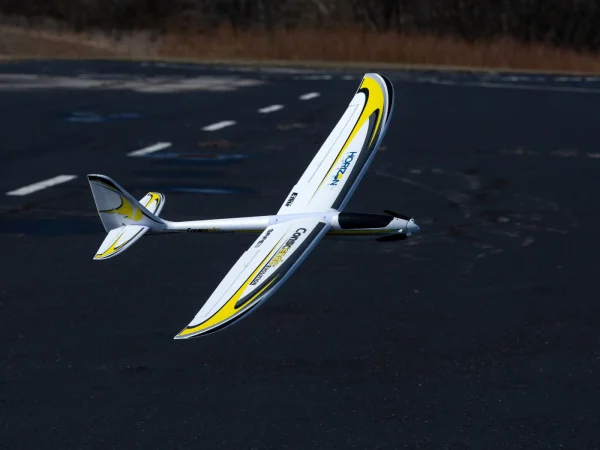

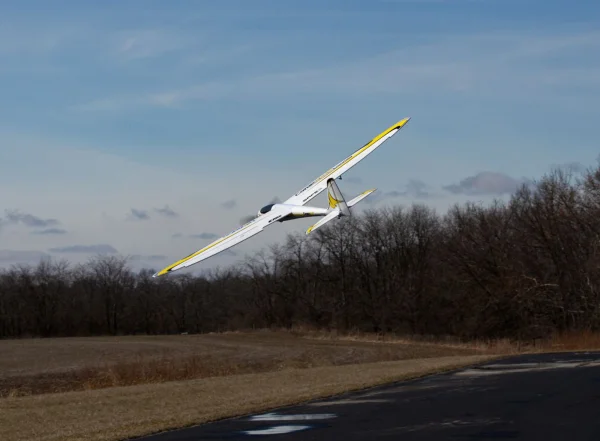

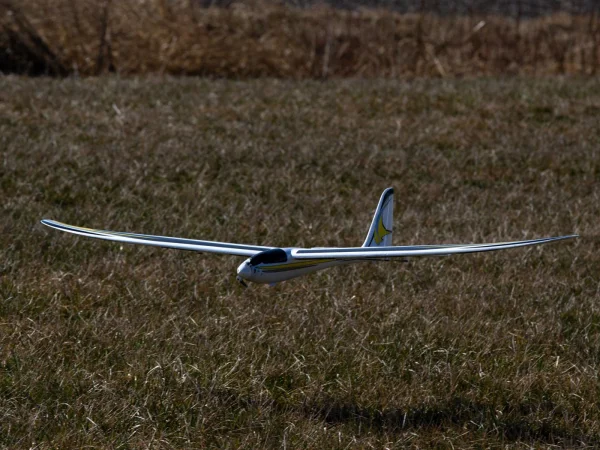

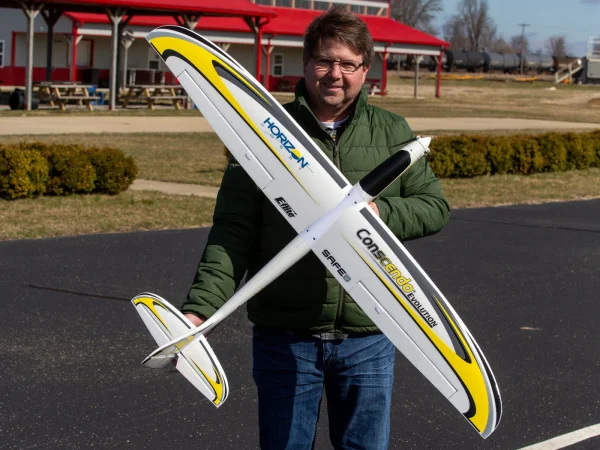

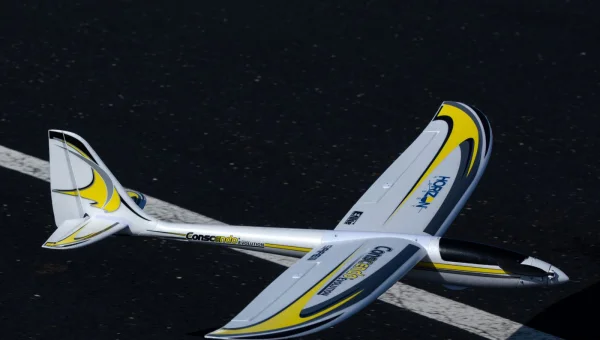

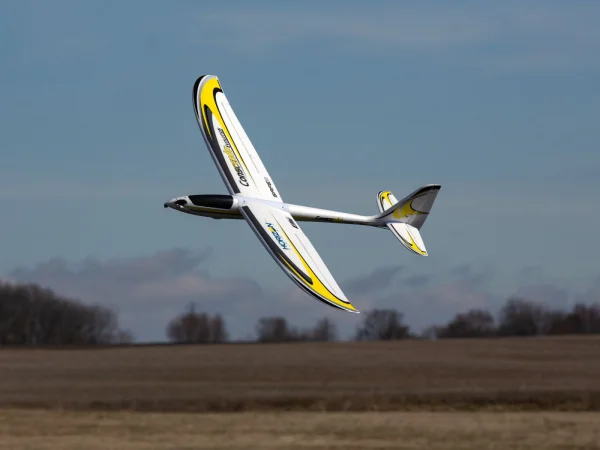

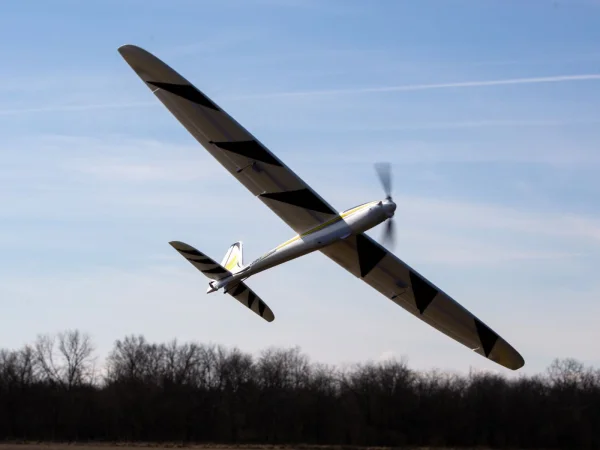

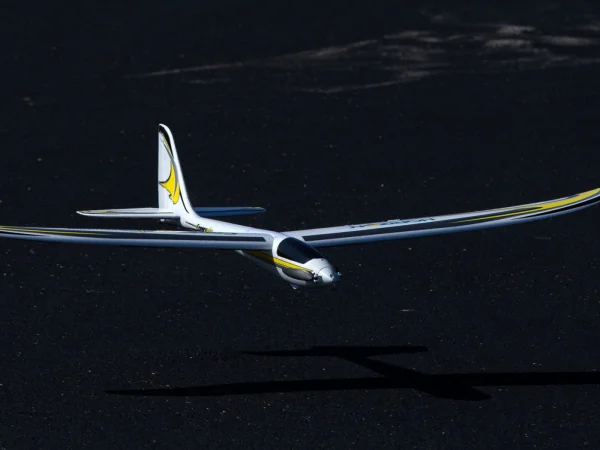

E Flite Conscendo Evolution 1.5m - BNF Basic

Introduction THE ULTIMATE CONSCENDO®

When the Conscendo® was first introduced it was geared towards RC newcomers who wanted to teach themselves how to fly with a powered glider. A few years later an "Advanced" version that offered more power for soaring, sport flying and aerobatics became a favorite of many intermediate and experienced pilots alike. Now the E-flite® Conscendo Evolution 1.5m evolves the design to be the most powerful, capable and fun to fly Conscendo yet! A stronger and stiffer airframe molded from higher density EPO combines with the more powerful 3S and 4S compatible power system featuring a telemetry-capable ESC to deliver higher speeds and more aerobatic performance — while offering the same smooth sport flying and soaring capabilities the Conscendo has always been known for.

Product Launch Video

Features

• Evolved to be the most powerful, capable and fun to fly Conscendo® yet for soaring, sport flying, high speeds and high energy aerobatics
• Higher density EPO results in a stronger and stiffer airframe capable of more aerobatic performance and higher speeds
• More powerful 3S and 4S compatible brushless power system with outrunner motor and folding propeller
• 30A telemetry-capable ESC provides real-time battery voltage, current, motor RPM and other data (via compatible receivers and transmitters)
• Long flight times up to 15-20+ minutes with a mix of power on/off flying using 3S 1300–2200mah or 4S 1000–2200mAh batteries
• 4-channel control including ailerons with four (4) factory-installed servos and linkages

• Spektrum™ AR637TA receiver with full-range telemetry and industry-leading DSMX® technology (BNF® Basic version only)
• Easy to fly with innovative and optional-use SAFE® Select flight envelope protection (BNF Basic version only)
• The unmatched stability and locked-in feel of exclusive AS3X® technology (BNF Basic version only)
• Easy to launch, fly and land, making it a perfect choice for a first powered sailplane model
• Lightweight yet durable composite-reinforced, high-density EPO construction
• Easy to install/remove two-piece wing and stabs
• Fast and easy assembly – no glue required

Overview PERFORMANCE FOR EVERY PILOT

This is the most powerful, capable, and fun to fly Conscendo® yet! With the benefits of E-flite® engineering expertise, the Conscendo Evolution 1.5m powered glider is now better equipped to deliver higher speeds and even higher energy aerobatic performance — yet it's still as easy and fun to sport fly and soar as ever before. With a 3S LiPo battery, the factory-installed brushless power system — featuring a 30-amp telemetry-capable ESC, specially-tuned outrunner motor and folding prop — delivers plenty of thrust for fast climbs to soaring altitude, sport flying and aerobatics. Using a 4S battery, it delivers even more speed and thrust for unlimited vertical performance without the need for modifications or upgrades. The new higher density EPO airframe has the additional strength and stiffness to handle anything an intermediate to experienced pilot will want to do with all that power, performance and full 4-channel control. Yet the Conscendo Evolution is still easy to launch, fly and land — especially the BNF® Basic version equipped with a Spektrum™ AR637TA receiver featuring exclusive AS3X® and optional-use SAFE® Select technologies — which makes it the perfect choice for a first powered glider. Flight ready in less time than it takes to charge a battery, the Conscendo Evolution offers a wide range of pilots a unique flying experience that no other model can provide.

Video Overview

Needed to Complete

• Full-range 5+ channel Spektrum™ DSMX®/DSM2® compatible transmitter
• 3S 11.1V 1300–2200mAh or 4S 14.8V 1000–2200mAh LiPo with EC3™ or IC3™ Connector
• Compatible LiPo charger

What's in the Box?

• (1) E-flite® Conscendo® Evolution™ 1.5m with:
• (1) 30A Telemetry-Capable Brushless ESC (installed)
• (1) Brushless Outrunner Motor (installed)
• (4) Servos (installed)
• (1) Spektrum™ AR637TA 6-Channel Receiver (installed)
• (1) Product Manual

Flight Talk

More Capable

Construction with higher density EPO results in a stronger and stiffer airframe with a smoother finish. Combined with carbon and other composite reinforcement in the fuselage, wings and tails, the Conscendo® Evolution can handle higher speeds and higher energy aerobatics – yet is still lightweight to deliver excellent soaring and sport flying performance, plus long flight times up to 15-20+ minutes with a mix of power on and power off flying.

More Power

The factory-installed brushless power system features a 30-amp telemetry-capable ESC plus a specially-tuned motor and folding prop that deliver an abundance of thrust with a 3S LiPo battery, or more speed and unlimited vertical performance with a 4S battery without the need for any modifications or upgrades.

Telemetry Capable

The Conscendo® Evolution 1.5m is equipped with an ESC that can provide a variety of real-time power system related telemetry data including motor RPM, current, battery voltage and more via compatible receivers (including the AR637TA installed in the BNF® Basic version) and Spektrum™ AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, iX12, iX20 and others) while you fly.

Easy Assembly

No glue is required for final assembly. You can have the Conscendo® Evolution ready to fly in less time than it takes to charge a battery. It's also easy to install and remove the two-piece wing and stabs for convenient storage and transport.

Bind-N-Fly Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

This Bind-N-Fly Basic model is equipped with a Spektrum 2.4GHz DSMX® receiver featuring AS3X (Artificial Stabilization–3-aXis) technology that works behind the scenes to smooth out the effects of wind and turbulence. The result is a heightened sense of stability and precision that makes you feel like you're flying a much larger, expertly tuned aircraft.

If this is your first model of its type, or you want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional-use SAFE® Select flight envelope protection technology built into the receiver. No programming is required. Simply change up the binding sequence as directed in the manual.

With SAFE Select enabled, you get:

Pitch and Bank Angle Limits

• These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.

Automatic Self-Leveling

• The airplane instantly returns to and holds level flight when the sticks are released and in the center position. It's also helpful for keeping the wings level during takeoffs/launches and landings.

Easy Switch Assignment—No Complex Programming Required

• The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any complex programming and takes just a few seconds.

If you don't want to enable the SAFE Select features, just bind the receiver normally and it will function like a standard AS3X receiver.

E Flite Conscendo Evolution 1.5m - BNF Basic Specfications:

• Approximate Assembly Time: Less than 1 hour
• Approximate Flight Time: Approximately 5 minutes
• Band: 2.4GHz
• Battery: Sold Separately
• Battery Type: LiPo (3.7V per cell)
• CG (Center of Gravity): 2-1/4 - 2-3/4 in (57-71 mm) behind leading edge of wing
• Channels: 5
• Charger: Sold Separately
• Completion Level: Bind-N-Fly Basic
• Flaps: No
• Flying Weight: 251-2000g
• Power Type: Electric
• Landing Gear: Front and rear skids
• Material: Foam
• Minimum Required Radio: 6-channel
• Minimum Speed Control: 30A included
• Motor Size: 3225
• Motor Type: Brushless
• Product Length: 39.6" (1006 mm)
• Propeller Size: 9.5" (241 mm)
• Radio: Sold Separately
• Receiver: Included
• Recommended Motor Battery: 4S 1800mAh LiPo w/EC3 or IC3 connector (sold separately)
• Servos: Included
• Skill Level: Level 2
• Speed Control: Included
• Technology: SAFE Select
• Transmitter Range: Full
• Trim Scheme Colors: Yellow and blue
• Wing Area: 405.3 sq. in (26.2 sq. dm)
• Wingspan: 59" (1499 mm)
