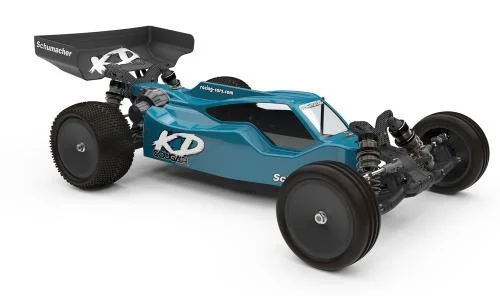

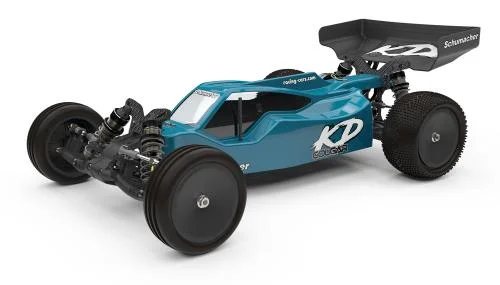

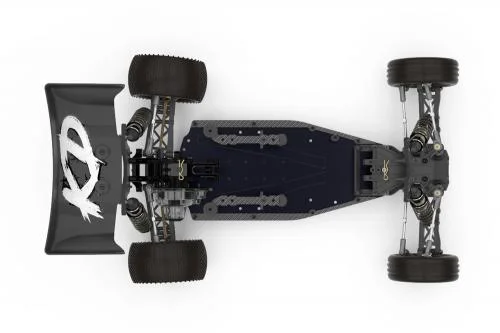

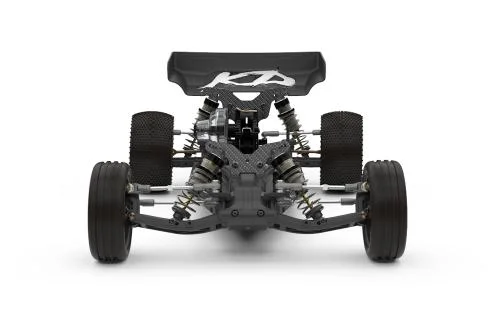

Designed for low traction dirt tracks the new Cougar KD raises the bar again. After a great performance at the European Off-Road Championships in Spain the KD prototype proved its pedigree. Both cars qualified for the ‘A’ Main, with Michal Orlowski finishing 3rd on the podium. The KD has the adjustability to be set up perfectly, from loose dirt to hard packed clay tracks as well as other low grip surfaces. Whether tight and twisty or open and flowing.
The new Cougar KD, taking dirt seriously.
Schumacher Cougar KD Requires to Complete:
- 2 Channel Radio
- Motor
- Servo
- Electric Speed Control
- Tyres
- Motor Pinion
- Lipo Battery
- Paint for Bodyshell
Schumacher Cougar KD Spec:
- Power Source: ELECTRIC
- Model Type: 2WD, OFF ROAD, COMPETITION
- Length: 395mm
- Wheelbase: 285mm
- Width: 250mm
- Top Speed: 40 MPH+
Schumacher Cougar KD Features:
- 3 gear, stand up gear box, with new 14 ball differential, Optional gear diff available.
- Super sleek, ‘Gull Wing’ wishbones with new Anti Roll Bar option.
- New Front outer hinge pin design, grub screw fixing for improved pin retention.
- Carbon fibre side pods for advanced chassis stiffness tuning.
- Multiple battery fitting options. Saddle, square and shorty.
- Sleek, ‘Shark Fin’ bodyshell.
- 2 sets of lightweight posts to suit standard and modern low profile batteries.
- Easy to use Battery thumb screws.
- 2.5mm aluminium chassis, with sensor lead wiring channels.
- Lightweight ball mounted, two piece shock cap with bleed screw and vented option.
- Two hole colour coded shock pistons front and rear.
- Rear transmission mounted pivot strap. Superb chassis clearance.
- Lightweight, twin pad slipper clutch with new Ultra Fine adjustment spring.
- Alloy transmission housings.
- Fully optimised suspension geometry - Fast, consistent handling.
- Front Camber Captive ball joints.
- Narrow rear 12mm hex.
- Large “CLAW” high downforce rear wing.
- Front 5 deg yokes with adjustable roll centre heights.
- Adjustable rear roll centres, inboard toe-in and anti-squat (using optional speed secret parts).
- Big bore shocks with big bore “CORE” springs, titanium nitride shafts, threaded collars and twin o-ring sealing.
- Shock seal pack housing with 'O' ring sealing to prevent loosening.
- 26 super precision ball bearings.
- Strong, rigid 4mm carbon fibre shock brackets.
- Strong steel universal driveshafts.
- Compact steering system for improved in-line weight placement, with adjustable and dynamic ackerman.
- Class leading suspension geometry with durable components and a range of optional alloy parts, offering adjustments to set up your COUGAR KD for all track conditions.
- Pro Ball studs with 2mm hex.
- Strong front steering hub, with fine ‘Kwik Klip’ adjustment.
- 12mm Hex Wheels with clean look and industry standard offset.
- Hi-Tensile, strong steel silver turnbuckles.
- Brand: Schumacher
- Part No: SCH-K171
- Barcode: 5051294081317
- Scale: 1:10
- Vehicle Type: Buggy
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Build Level: Unassembled (Kit)
Two Simple UK Delivery Options
Royal mail at £3.95, or Express at £6.95.
Full details at checkout.
Some items cannot be sent via Royal Mail due to their restrictions.
We Ship Worldwide!
To see shipping costs simply add the item to your basket and choose your country from the drop down list on the view cart page.
No product reviews yet!
Hi I was wondering what the rear tyres are the model is pictured with are? ( Cougar KD ) They look great, thanks
Asked by Dave Sharp on 14th September 2019
We believe it was a Core RC tyre, which is unfortunately no longer available.
Answered by: Ben @ Wheelspin Models
Hi there .
Looking at the cougar kd and the lay down version for some novice dirt racing ... been indoors racing minis all winter and am looking to get my first( for a long time) outdoors buggy . Had a schumacher pro cat back in the day so want to scratch that itch , but want something 2 wheel drive ... I'm sure the differences are negligible for someone of my caliber but wanted to know what they were .
All the best . Charlie
Asked by Charles Skelton on 18th April 2020
The laydown has a slightly lower centre of gravity, that's about it :-)
Answered by: Ben @ Wheelspin Models
Schumacher Cougar KD - i think the kit doesnt come with tyres and inserts? can you recommend front and rear tyres as pictured in product photo and i'll order. do you do next day delivery?
Asked by Simon Christian on 17th September 2020
So any 2WD front and buggy rear tyres should fit.
Some popular choices would be say U6824 on the front and U6826 on the rear.
Foams we'd use CR689 on the front and CR687 on the rear
Tyre glue whilst we're here - go for TGLUE
Answered by: Ben @ Wheelspin Models
Hi, would this be able to fit a 3s Lipo? Thanks
Asked by Lannan on 1st January 2021
You'd run a 2S shorty pack in these normally...
Answered by: Ben @ Wheelspin Models
