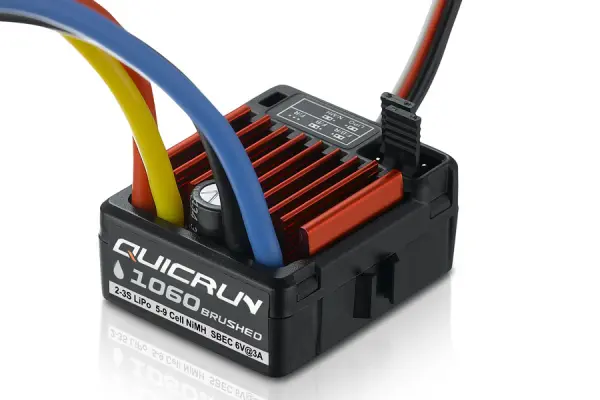

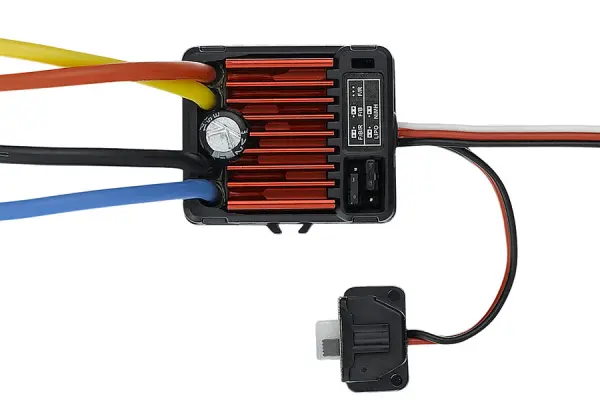

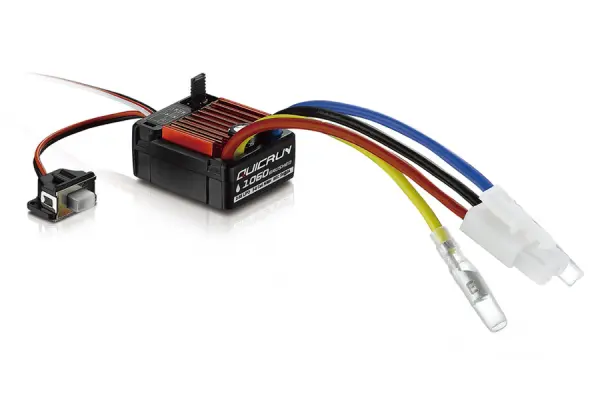

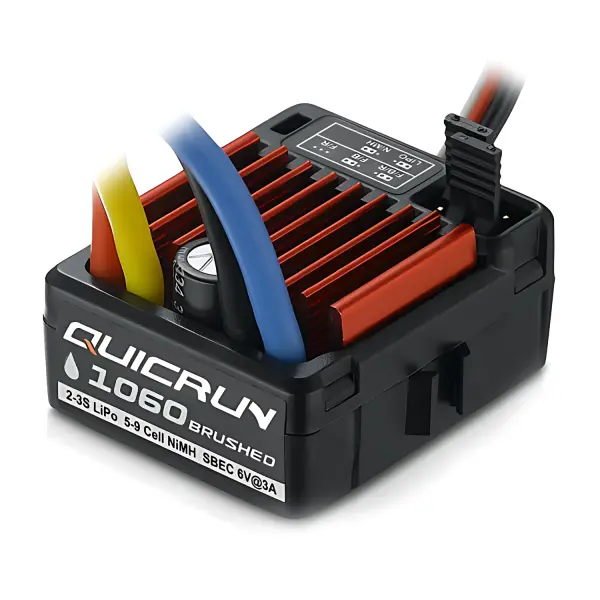

HOBBYWING QUICRUN 1060 BRUSHED SBEC ESC (60A)
The QuicRun WP 1060 is specially designed for new beginners and intermediate modelers. This speed controller is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
HobbyWing QuicRun WP 1060 Features:
- High Reliability & Durability
- Easy to Use
- Great Flexibility & Versatility
- Applicable to All Weather Conditions
Spec Check:
- Motor Limit: 12T at 7.4v
- Scale: 1/10th
- Brushed
- Waterproof: Yes
- Cont./Peak Current: 60A/360A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Linear Mode:6V/3A
- Input Wires: Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires: Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors: Big-sized TAMIYA Connector
- Output Connecotors: 4.0 Bullet Connectors (Female)
- Size: 35.5x32.18x18.0mm
- Weight: 39g
Hi, I have an 18turn brushed motor and 3300amh 7.2v nicads, will this cope with this?
Asked by Darren Lane on 14th June 2018
Yes, that should be fine.
Answered by: Ben @ Wheelspin Models
what t motor can it handle
Asked by Sean Mcgowan on 24th June 2018
Motor limit:
- 2S LiPo: 12T
- 3S LiPo: 18T
Answered by: Ben @ Wheelspin Models
is it easy to fit to an ftx mauler brushed?
Asked by Stephen Haworth on 12th July 2018
Yes, should be a simple plug and play job.
Answered by: Ben @ Wheelspin Models
Hi, will this esc work with a 13T motor and 7.2v battery?
Asked by Philip on 4th August 2018
Yes, that should be fine.
Answered by: Ben @ Wheelspin Models
I am looking to replace the combined ESC and radio on a Ripmax Jackal, I am happy I will need to do some 'modifications' to make everything fit, and very capable of doing this. Re: ESC 1625 (which you have no stock of) or 1060 (is there an issue of using a bigger ESC?)? unsure...
Asked by Mark Ferris on 12th August 2018
HW30120000 is rated at 25 amps, this 1060 is rated at 60 amps. There's no harm in using a bigger ESC, as they will only supply what the motor is drawing. Provided you can fit the larger model in your chassis it will be fine.
Answered by: Ben @ Wheelspin Models
Hi Would this be ok to use with RC4WD 540 Crawler Brushed Motor 55T PART NUMBER: Z-E0003. If not, could you please recommend a similar priced ESC that would work with the motor.
Many thanks. Dave
Asked by Dave on 3rd November 2018
Yes, that would work fine with that motor.
You may however want to look at a specific crawler ESC such as HW30112750 for more crawler specific features.
Answered by: Ben @ Wheelspin Models
Will this work with a 27turn bushed motor in a monster truck?
Asked by Elliott Handley on 8th January 2019
Yes, that should work fine.
Answered by: Ben @ Wheelspin Models
Should this work ok with a traxxas 21t 550 brushed motor . Struggling at low speed under load
Asked by Brent Owen on 17th March 2019
Yes, that should work with that motor. As ever, check your gearing and temperatures accordingly.
Answered by: Ben @ Wheelspin Models
Can this be used with a tamiya 8.4v vintage battery?
Asked by Carlos on 15th November 2019
Yes it can as it will handle upto 9 cell Nimh batteries.
Answered by: Anthony @ Wheelspin Models
Would this work on the standard 550 15T ftx carnage motor
Asked by Matt on 30th January 2020
Yes that should work fine
Answered by: Ben @ Wheelspin Models
Is there a fan available for this?
If so which one?
Asked by Jason on 5th April 2020
These don't have a fan port, and as they're only a basic ESC, we don't usually run a fan on these.
Answered by: Ben @ Wheelspin Models
Does this unit have a built in alarm or cutoff for when using Lipo batteries with a brushed motor?
Asked by Matt Friend on 1st September 2020
Yes these have a lipo cutoff
Answered by: Ben @ Wheelspin Models
Would this work with an RS-540 Sport Tuned motor - 23 Turns, 7.2V?
Asked by Oliver Maynard on 13th September 2020
Yes that should work fine
Answered by: Ben @ Wheelspin Models
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC
Hi is this a good upgrade for my stock ftx Kanyon and can I fit xt30 connector ok? Thanks
Asked by Simon Hill on 30th January 2021
Yes that should work fine in there. And yes you can fit whichever connector you like
Answered by: Ben @ Wheelspin Models
Which fan should I use on the 1060?
Thanks
Asked by Mark Saville on 7th February 2021
These wouldn't normally need a fan in most conditions - but any fan aimed at it would help airflow
Answered by: Ben @ Wheelspin Models
Will this esc run a tamiya rz motor?
Asked by James Doodson on 8th April 2022
Yes it will.
Answered by: Steve W @ Wheelspin Models
Does this esc do forward and reverse,thanks
Asked by Brian Tee on 7th May 2022
Yes it does.
Answered by: Steve W @ Wheelspin Models
Hi, can I use Tamiya Female to Traxxas Male Charger Adaptor BRAND: FUSION PART NUMBER: O-FS-TAM/TRX with this so I can use my Traxxas ID batteries? Thanks.
Asked by Andrew Campbell on 4th July 2022
Yes that would work for you.
Answered by: Si @ Wheelspin Models
Does this have reversing, a brake and work with a 12volt lead acid battery
Asked by David Bradley on 18th October 2022
Yes this has reverse and brake but will only operate on
Answered by: Steve W @ Wheelspin Models
Is there a max rpm for 12t motor with this esc?
Asked by Phil on 29th November 2022
Yes this will have a max limit of 30,000rpm
Answered by: Si @ Wheelspin Models
Will this work with 3s 11.1 lipo
Asked by Wayne on 7th December 2022
Depending on the motor it will if the motor is under 4000kv .
Answered by: Steve @ Wheelspin Models
I'm looking to replace a msc on my old Tamiya Super Hornet, I am looking at at ESC and have a Acoms receiver which looks like it needs a battery input, could you advise on which ESC would be suitable or if I need a new receiver?
Many thanks
Asked by George on 28th December 2022
You could use this esc but you would need a more modern receiver which takes the power from the esc.
Answered by: Steve @ Wheelspin Models
Hello
What is the min and max voltage this esc can accept thanks.
Asked by Daniel on 15th May 2023
Input voltage: 2-3S LiPo / 6-9 Cells NiMH
Answered by: Si @ Wheelspin Models
Hi, i have a ftx banzai will this be ok to run in my banzai drift?
Asked by Amir on 19th May 2023
Yes that would be perfect .
Answered by: Steve @ Wheelspin Models
Will this run a super stock BZ?
Asked by Rob S on 14th October 2023
Yes that will work fine.
Answered by: Steve @ Wheelspin Models
