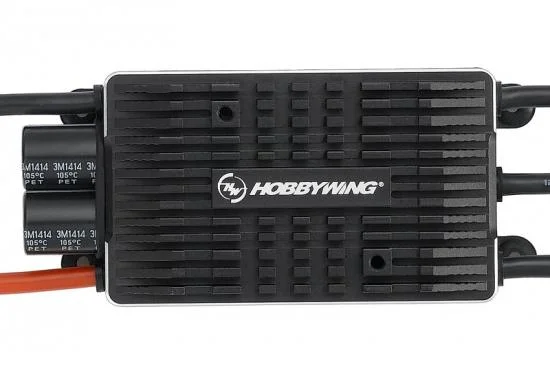

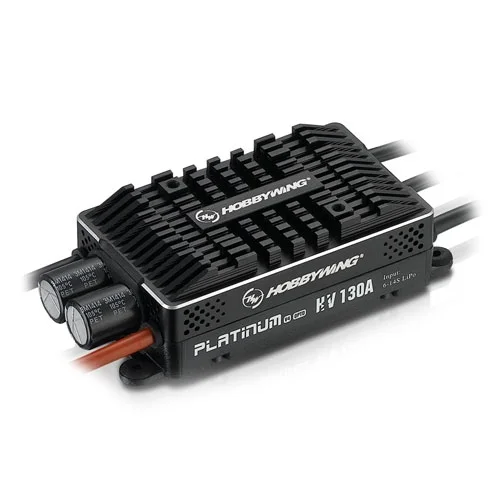

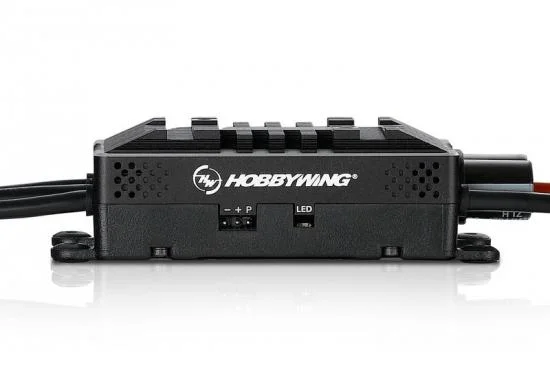

Hobbywing Platinum Pro V4 130A HV Opto ESC

Hobbywing Platinum Pro V4 130A HV Opto ESC

Brand: Hobbywing

Part Number: HW30209201

£206.99 Web Price RRP £229.99

In stock: Usually ships same day

Request Price Match

HOBBYWING PLATINUM PRO 130A HV OPTO V4 SPEED CONTROLLER

Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds, this will definitely create a perfect starting point for every flight.

High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantee every pilot a precise control experience.

This Platinum V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically allotted based on the position of radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple protection features include ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss(or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC. The Built-in Arc proof circuit effectively eliminates Arc/Spark produced at the “powering-on” moment and prolongs the connectors‘ lifespan.

HobbyWing Platinum HV 130A OPTO V4 Features:

  • Super Soft Start-up
  • Excellent Motor Speed Governing
  • DEO Technology
  • Built-in Sparkproof Circuit
  • Four Brake Modes
  • Multiple Protections
  • Upgradeable ESC firmware

Spec Check:

  • Brushed/Brushless: BL
  • Cont./Peak Current: 130A/160A
  • Input Voltage: 6-14S LiPo
  • BEC Output: No
  • Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
  • Output Wires: Black-12AWG-100mm*3
  • Input Connectors: No
  • Output Connecotors: No
  • LCD Program Box: Supported
  • WiFi Module: Supported
  • Size: 101.0x45.5x27.0mm
  • Weight: 154g



Free UK Delivery!

This item is over £100, so qualifies for free standard UK shipping!

We Ship Worldwide!

To see shipping costs simply add the item to your basket and choose your country from the drop down list on the view cart page.

No product reviews yet!

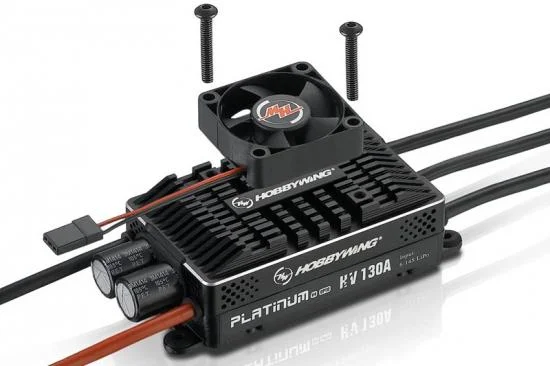

Hi which cooling fan do you need for this esc?
Asked by Guy Eastment on 23rd January 2019

The fan for these is HW30860103

Answered by: Ben @ Wheelspin Models

Do these have a soft start facility?
Asked by Lee on 27th March 2021

Yes, hobbywing quote "Super Soft Start-up - Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift
issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,
this will definitely create a perfect starting point for every flight."

Answered by: Ben @ Wheelspin Models
