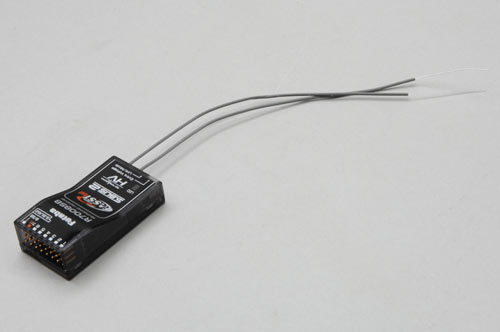

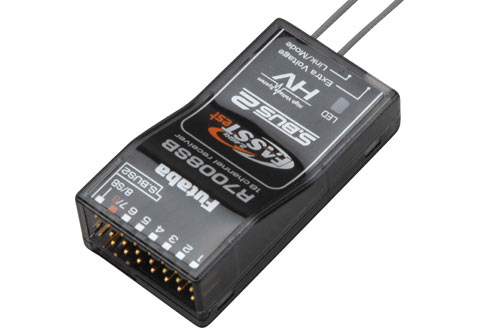

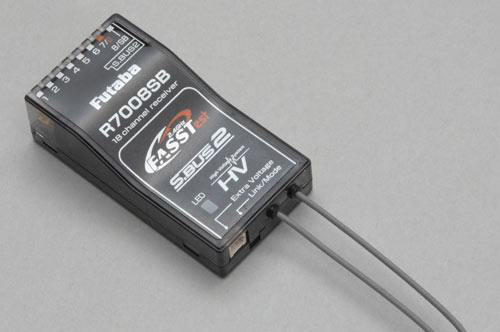

Futaba R7008BB 8/18ch S-Bus HV Receiver

The R7000SB is a FASSTest telemetry enabled receiver, a high-voltage design that operates up to 8 channels using the 8 standard PWM outputs or up to 18 channels (16 proportional + 2 digital) using the S-Bus port.

That means a simpler setup and full support for S-Bus and S-Bus2 servos. As supplied the R7008SB receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further sensors available separately.

• 8 Channel using PWM
• 18 Channel using S.Bus
• Extra voltage port (0 - 70V DC)
• Diversity aerial for optimal reception
• S.Bus & S.Bus2 capability
• High Voltage capable

Specifications
Fail Safe	Yes
Modulation	FASSTest (18ch & 12ch Modes)
S.BUS	S.Bus & S.Bus2
Weight	10.9g (0.38 oz)
Channels	8 PWM (18 S-BUS)
Dimensions	24.9 x 47.3 x 14.3mm
Voltage	3.7 - 7.4V (3.5 - 8.4V Range)
