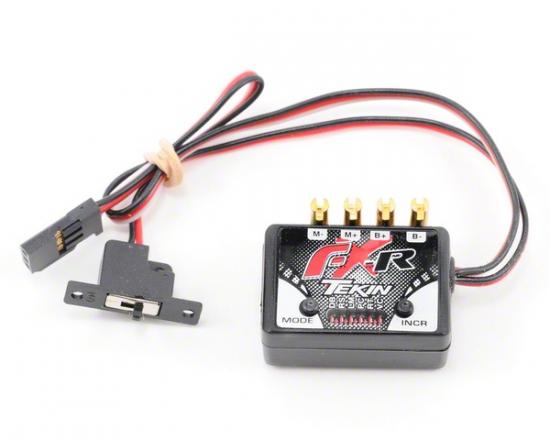

Tekin FXR Fwd/Rev ESC - 12T Limit

The FX series leads the industry in brushed competition performance. With it's ultra small footprint and flash-programmable microcontrollers with the lowest on-resistance MOSFETS ever used in a speed controller, the FX completely eliminates any power bottleneck between your battery and motor, increasing efficiency and breathing new life into your brushed motors. The FX has thousands of possible settings right on-board with Tekin's QuickTune™ Programming and is also capable of extensive tuning and updates when used with Tekin's HotWire PC Interface (sold separately).

The FX-R reversing speed controller leads the industry in pure rock crawling performance. With its tiny footprint, improved drag brake resolution with lock-down holding power, adjustable reverse type with reverse delay, no reverse or instant reverse, ultra smooth low speed creep and precision throttle and braking response, the FX-R easily gives you the edge over the competition. The FX-R has thousands of possible settings right on-board with Tekin's QuickTune™ Programming and is capable of extensive tuning and updating when used with Tekin's HotWire PC Interface*. The FX-R can also take on your power needs with 3S Li-Po compatibility when used with 35 turn or higher motors. Install the FX-R and step up to smarter, smaller, faster electronics. And if you have an older FX-R you can download the latest software updates with our HotWire interface.

Features

• Easily Access Programming, Anywhere, Anytime
• On-Board Temperature Indicator
• PC Interface for Custom Programming *Tekin HotWire Required
• HDAC: High Density Copper Fet Boards
• Solder Posts for Easy Wire Replacement
• Self Test Diagnostics and Factory Reset
• Pit Tune Mode
• Digital Glitch Filtering
• QuickTune™ One-Touch Programming
• One-Touch Radio Calibration
• Rock Crawler Safe with 3S Lipo and 35T+ motors

Program Features

• Drag Brake (11 steps)
• Neutral Width (11 Steps)
• Current Limiter (none, 10 steps)
• Push Control- Anti Drag (11 steps)
• FX, FXPro: Throttle Profiles (6 choices)
• FX, FXPro: Brake Profiles (6 choices)
• FX-R, FX-R Pro: Reverse Type (3 choices; none, delay, immediate)
• FX-R, FX-R Pro: Reverse Strength (11 steps)
• Voltage Cutoffs (none, 2S, 3S, Custom)
• Additional Tuning via Tekin HotWire PC Interface (sold separately)

FX Specs

• Controls: Forward/Brake
• ON Resistance: 0.0003 Ohms
• Input Voltage: 4-9 Cells, 2S Lipo
• BEC: 6.0V/3.0A
• Motor Limit: 10 Turn
• Throttle Profiles: 6 choices on board
• Brake Profiles: 6 choices on board
• Dimensions: 1.1 x 0.80 x 0.40 " (28 x 20 x 10mm)

FX-R Specs

• Controls: Forward/Brake/Reverse
• ON Resistance: 0.0012 Ohms
• Input Voltage: 4-9 Cells, 2S Lipo (3S Lipo with 35T or higher motor)
• BEC: 6.0V/3.0A
• Motor Limit: 13 Turn
• Throttle Profiles: 7 choices on board
• Reverse Type : 3 choices on board; none, delay, immediate
• Reverse Strength: 11 steps on board
• Rock Crawler Spec: 3S Lipo compatible when used with 35T or higher motor
• Dimensions: 1.1 x 0.80 x 0.40 " (28 x 20 x 10mm)

FX Pro Specs

• Controls: Forward/Brake
• ON Resistance: 0.000075 Ohms
• Input Voltage: 4-9 Cells, 2S Lipo
• BEC: 6.0V/3.0A
• Motor Limit: None
• Throttle Profiles: 6 choices on board
• Brake profiles: 6 choices on board
• Dimensions: 1.1 x 0.80" x .60" (28 x 20 x 15.24mm)
• Weight: 0.8oz (24g)

FX-R Pro Specs

• Controls: Forward/Brake/Reverse
• ON Resistance: 0.0006 Ohms
• Input Voltage: 4-9 Cells, 2S Lipo (3S Lipo with 35T or higher motor)
• BEC: 6.0V/3.0A
• Motor Limit: None
• Reverse Type : 3 choices on board
• Reverse Strength : 11 steps on board
• Rock Crawler Spec: 3S Lipo compatible when used with 35T or higher motor
• Dimensions: 1.1 x 0.80" x .60" (28 x 20 x 15.24mm)
• Weight: 0.8oz (24g)
