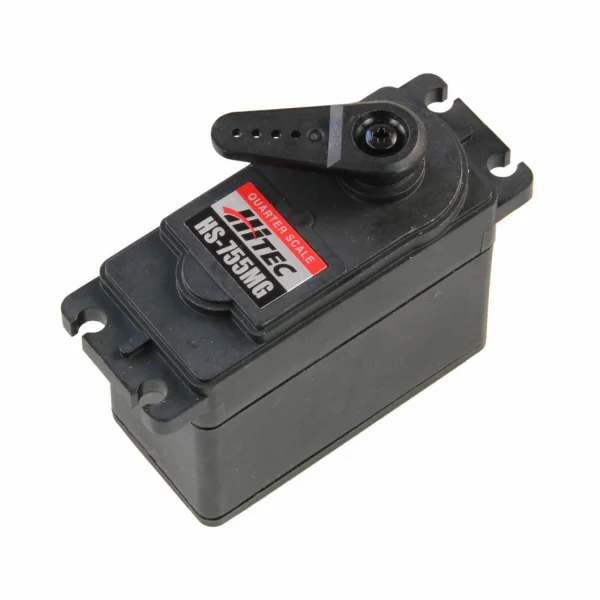

Hitec HS755MG Quarter Scale Metal Gear Servo
Brand: Hitec
Part No: 2214520
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
The Hitec HS755MG Quarter Scale Metal Gear Servo (2214520) is a giant-scale workhorse for larger R/C applications. Built around robust metal gears with dual ball bearings and a water and dust resistant case, this 3‑pole servo delivers dependable high-torque performance up to 200 oz./in. at 6.0V.
Key Features
- Metal gear train for durability
- Dual ball bearings for smooth operation
- Water and dust resistant case
- 3‑pole motor
- Quarter/giant-scale form factor
Specifications
- Speed (4.8V/6.0V): 0.28 / 0.23 sec @ 60°
- Torque (oz./in., 4.8V/6.0V): 167 / 200
- Torque (kg./cm., 4.8V/6.0V): 12.0 / 14.4

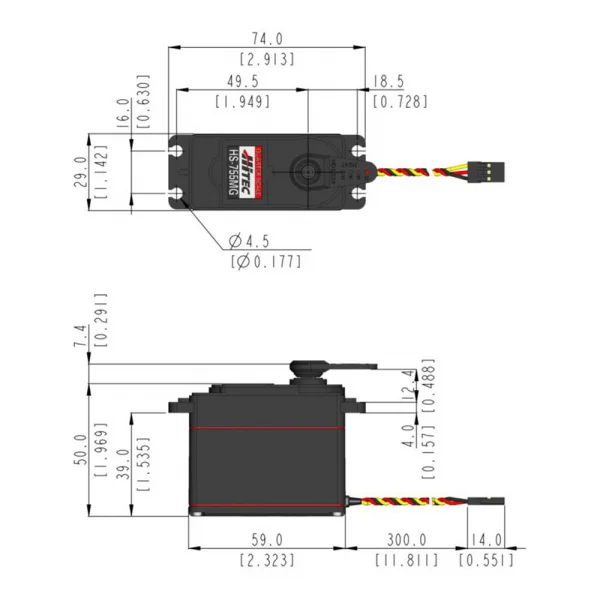

- Dimensions (mm): 58.93 x 28.96 x 49.78
- Dimensions (in): 2.32 x 1.14 x 1.96
- Weight: 116.8 g (4.12 oz)
- Bearing type: Dual ball bearing
- Motor type: 3 pole
Secure Payments
Secured by Stripe
Hitecs expansive line-up of servos include the HS-755HB and HS-755MG giant scale servos offered with either the revolutionary Karbonite gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755HB delivers 183 oz./in. of torque at 6 volts.
- Motor Type - 3 Pole
- Bearing Type - Dual Ball Bearing
- Speed (4.8V/6.0V) - 0.28 / 0.23 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 12.0 / 14.4
- Size in Millimetres - 58.93 x 28.96 x 49.78
- Weight grams - 116.8
- Gears - Metal
Specifications:
| Motor Type: | 3 Pole |
| Bearing Type: | Dual Ball Bearing |
| Speed (4.8V/6.0V): | 0.28 / 0.23 |
| Torque oz./in. (4.8V/6.0V): | 167 / 200 |
| Torque kg./cm. (4.8V/6.0V): | 12.0 / 14.4 |
| Size in Inches: | 2.32 x 1.14 x 1.96 |
| Size in Millimeters: | 58.93 x 28.96 x 49.78 |
| Weight ounces: | 4.12 |
| Weight grams: | 116.80 |
Key Info:
- Brand: Hitec
- Part No: 2214520
- Barcode: 669962320467
- Max Voltage: 6v
- Gear Material: Metal
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
How much is the operating angle,
is it able to rotate 360°?
Karina / 5th February 2018
You can make these continuosly rotate if you wish by taking apart and removing the stops.
Ben @ Wheelspin Models
