7.6gm DS76 Digital Sub-Micro Digital Servo

The E Flite DS76 Digital Sub-Micro Servo (EFLRDS76) delivers high speed, high torque and precise centring in a compact 7.6g package. Designed for minis and micros, it suits electric park flyers, hand-launch gliders and micro to mini helicopters where fast, accurate control is essential.

Key Features

• Digital amplifier for superior accuracy, response and holding torque
• High speed response: 0.11 sec/60° @ 4.8V (0.09 sec/60° @ 6.0V)
• High torque: 24.2 oz-in (1.75 kg-cm) @ 4.8V; 28.0 oz-in (2.00 kg-cm) @ 6.0V
• Precise centring: less than 1°
• Lightweight: just 7.6g
• Universal connector compatible with major brand receivers

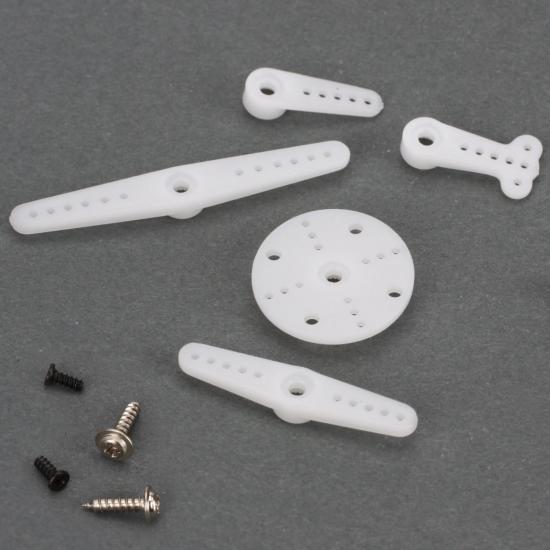

• Includes complete mounting hardware
• Includes multiple servo arms, including an extra-long 3D arm for extreme throws

Specifications

• Size Category: Minis and Micros
• Type: Digital
• Application: Sub-micro and micro-sized aeroplanes and helicopters
• Torque: 24.2 oz-in (1.75 kg-cm) @ 4.8V; 28.0 oz-in (2.00 kg-cm) @ 6.0V
• Speed: 0.11 sec/60° @ 4.8V; 0.09 sec/60° @ 6.0V
• Dimensions (L x W x H): 23.0 x 11.5 x 24.0 mm
• Weight: 7.6 g (0.27 oz)
• Motor Type: Coreless
• Connector Type: Universal
• Gear Type: Nylon
• Current Draw (Idle): 27 mA @ 4.8V
• Current Draw (Stall): 473 mA @ 4.8V
• Operating Voltage: 4.8–6.0V DC

Suggested compatibility: replacement servo for the Blade 450 3D helicopter.
